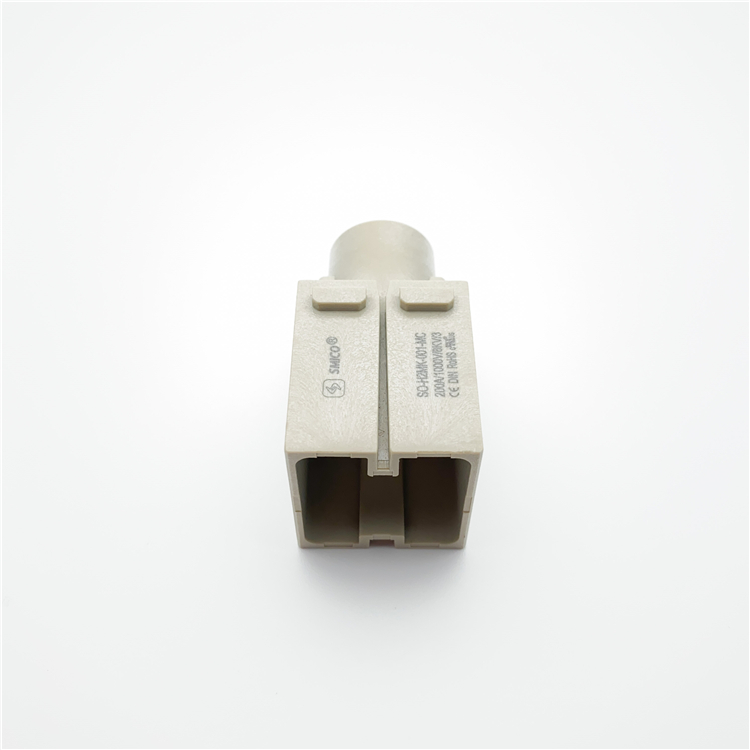

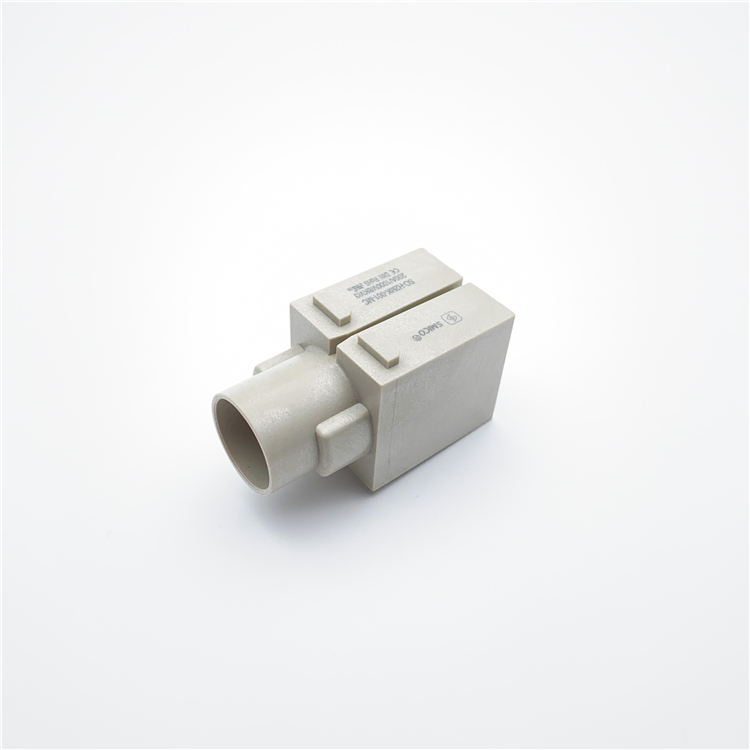

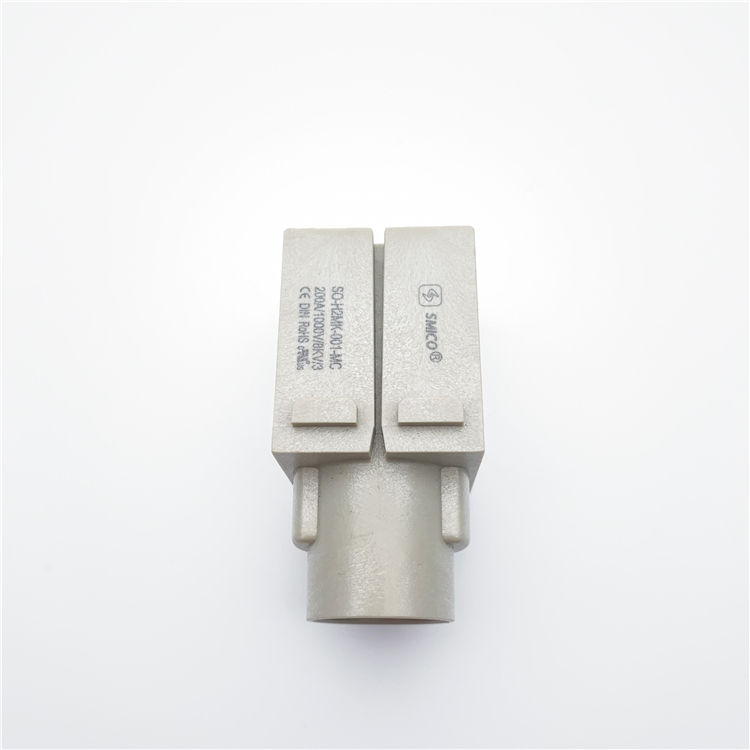

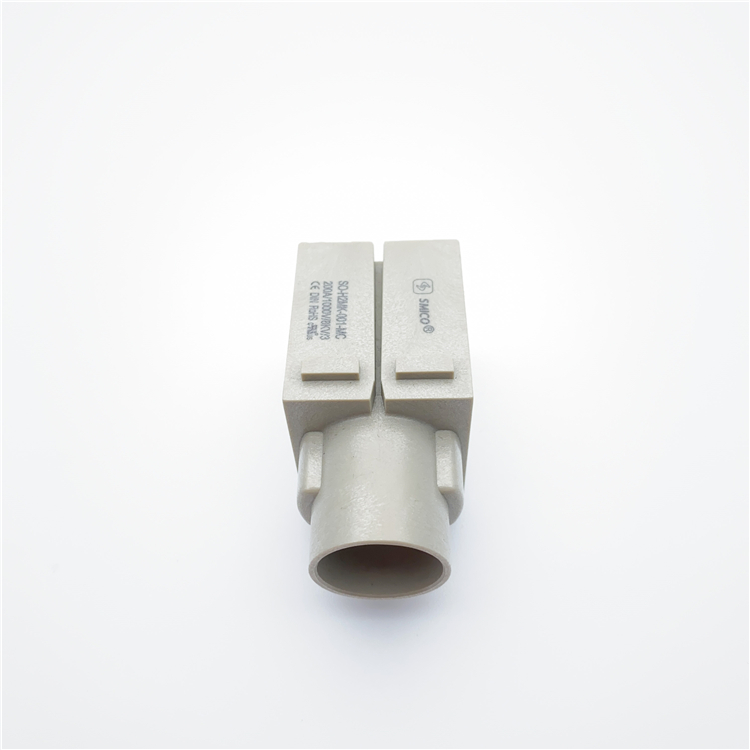

SO-H2MK-001-MC 200A Heavy Duty 1 Pin Connector Crimp terminal
SO-H2MK-001-MC 200A Heavy Duty 1 Pin Connector Crimp terminal
SO-H2MK-001-MC 200A Heavy Duty 1 Pin Connector Crimp terminal
SO-H2MK-001-MC 200A Heavy Duty 1 Pin Connector Crimp terminal
SO-H2MK-001-MC 200A Heavy Duty 1 Pin Connector Crimp terminal
SO-H2MK-001-MC 200A Heavy Duty 1 Pin Connector Crimp terminal

SO-H2MK-001-MC 200A Heavy Duty 1 Pin Connector Crimp terminal

Part
SO-H2MK-001-MC
Product Certification
UL CUL CE ROHS DMT
Order No.
09140013001

Crimp and Axial module are compatible module. Contacts can be unlocked from the mating side

inquiry download pdf

Product Detail

Inserts
Number of contacts 1
Electrical dataacc. to EN 61 984
---Rated current 200A
---Rated voltage 1000V
---Rated impulse voltage 8KV
-Pollution degree 3
Rated voltage acc. to UL 600V
Insulation resistance ≥10^10Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance 0.3mΩ
For stranded wire according to IEC 60 228 Class 5
Screw terminal
---Wire gauge 25-70mm2
---AWG 2-0
---Hexagonal driver SW 5
---Stripping length 16mm
---Tightening tourque

mm2

25

35

50

70

N.m

8

8

9

10
