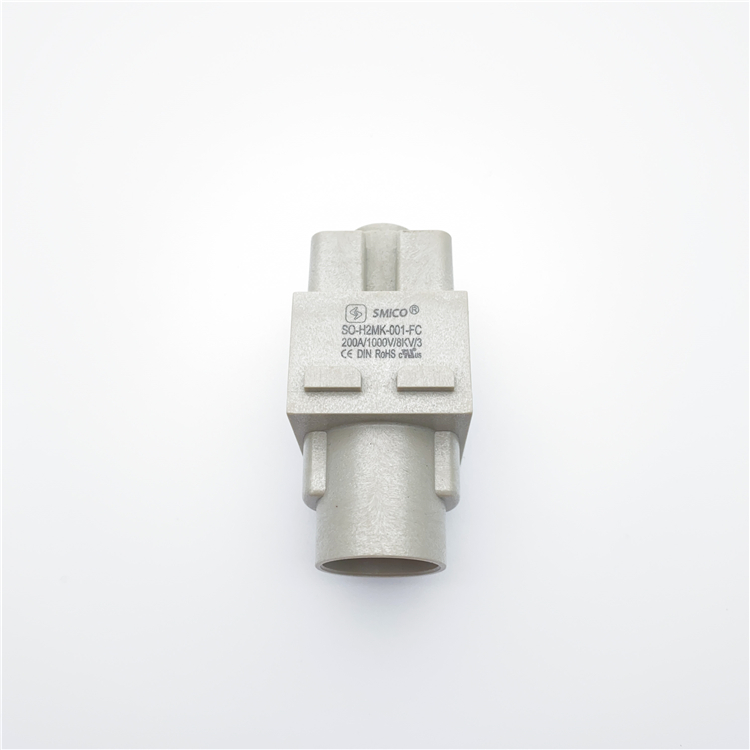

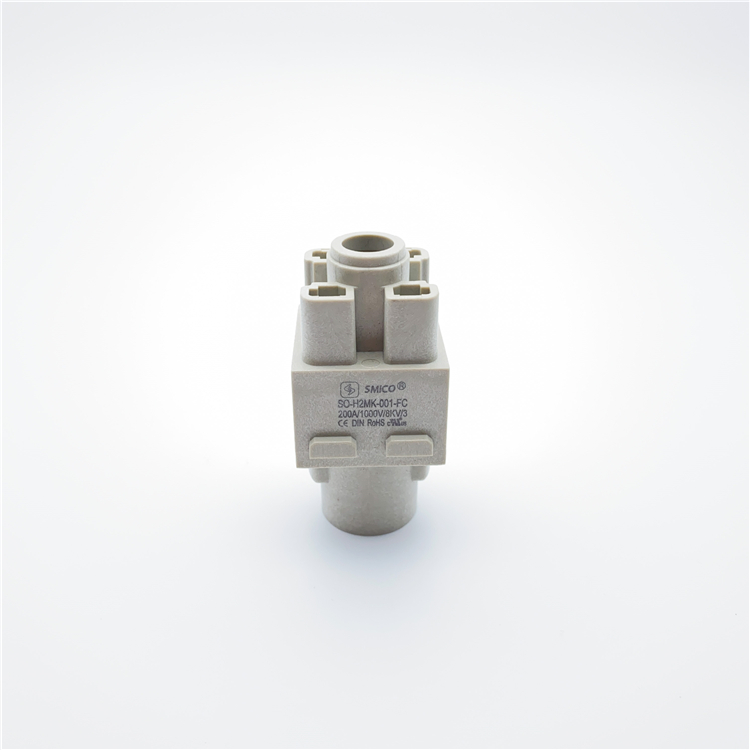

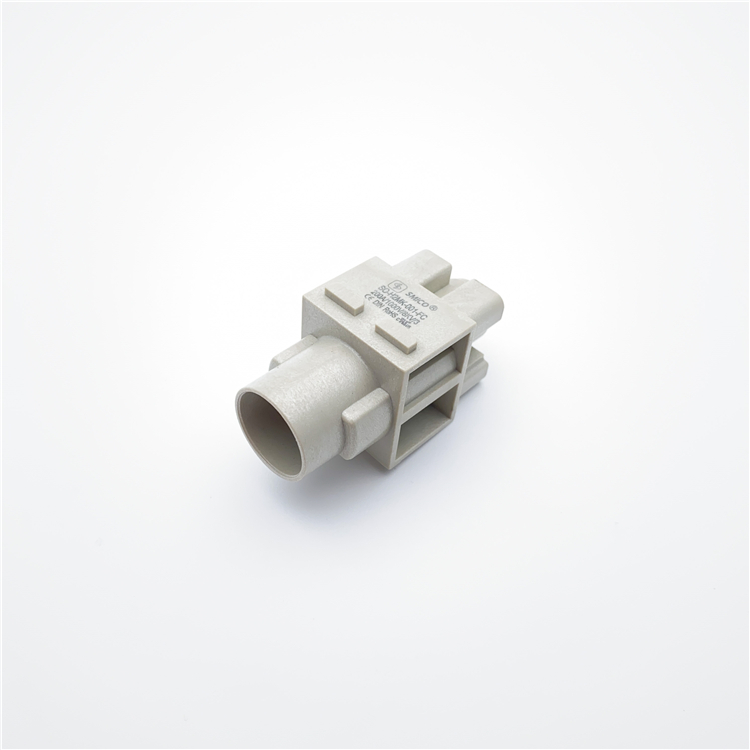

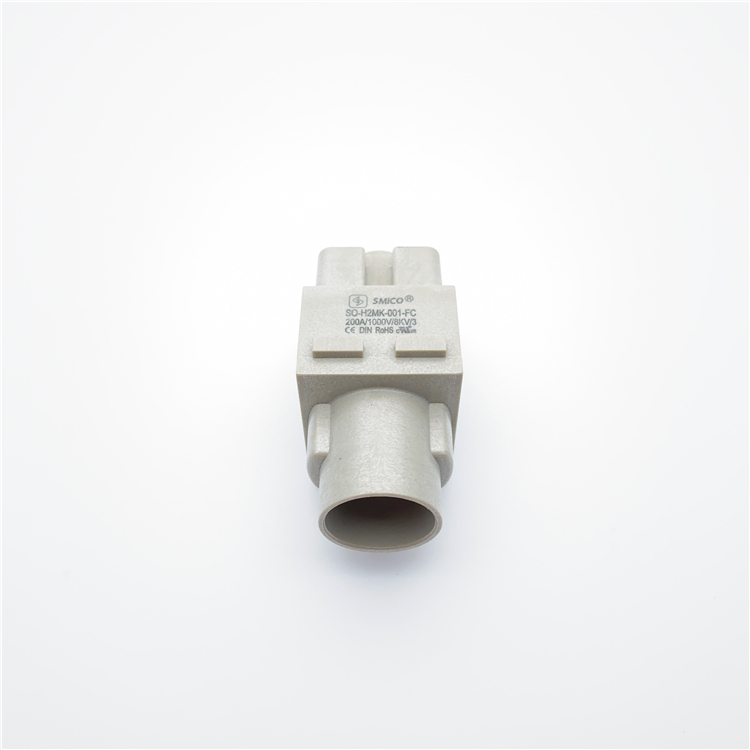

SO-H2MK-001-FC 200A Heavy Duty 1 Pin Connector, Crimp terminal
- Part
- SO-H2MK-001-FC
- Product Certification
- UL CUL CE ROHS DMT
- Order No.
- 09140013101
Crimp and Axial module are compatible module. Contacts can be unlocked from the mating side
Product Detail
| Inserts | |||||||||||
| Number of contacts | 1 | ||||||||||
| Electrical dataacc. to EN 61 984 | |||||||||||
| ---Rated current | 200A | ||||||||||
| ---Rated voltage | 1000V | ||||||||||
| ---Rated impulse voltage | 8KV | ||||||||||
| －Pollution degree | 3 | ||||||||||
| Rated voltage acc. to UL | 600V | ||||||||||
| Insulation resistance | ≥10^10Ω | ||||||||||
| Material | polycarbonate | ||||||||||
| Limiting temperatures | -40℃...+125℃ | ||||||||||
| Flammability acc. to UL 94 | V0 | ||||||||||
| Mechanical working life -mating cycles | ≥500 | ||||||||||
| Contacts | |||||||||||
| Material | copper alloy | ||||||||||
| Surface | hard-silver plated | ||||||||||
| Contact resistance | 0.3mΩ | ||||||||||
| For stranded wire according to IEC 60 228 Class 5 | |||||||||||
| Screw terminal | |||||||||||
| ---Wire gauge | 25-70mm2 | ||||||||||
| ---AWG | 2-0 | ||||||||||
| ---Hexagonal driver | SW 5 | ||||||||||
| ---Stripping length | 16mm | ||||||||||
| ---Tightening tourque |
|
||||||||||
