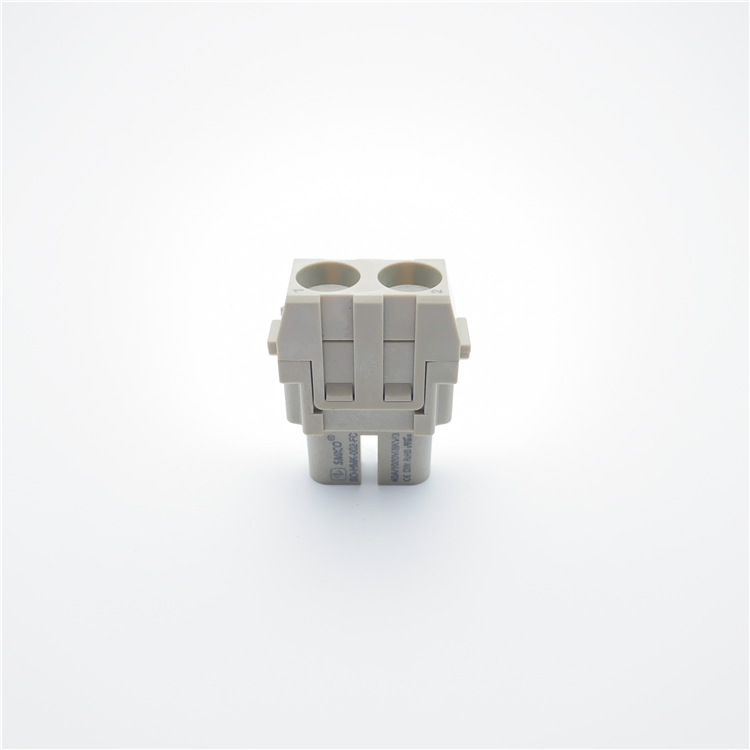

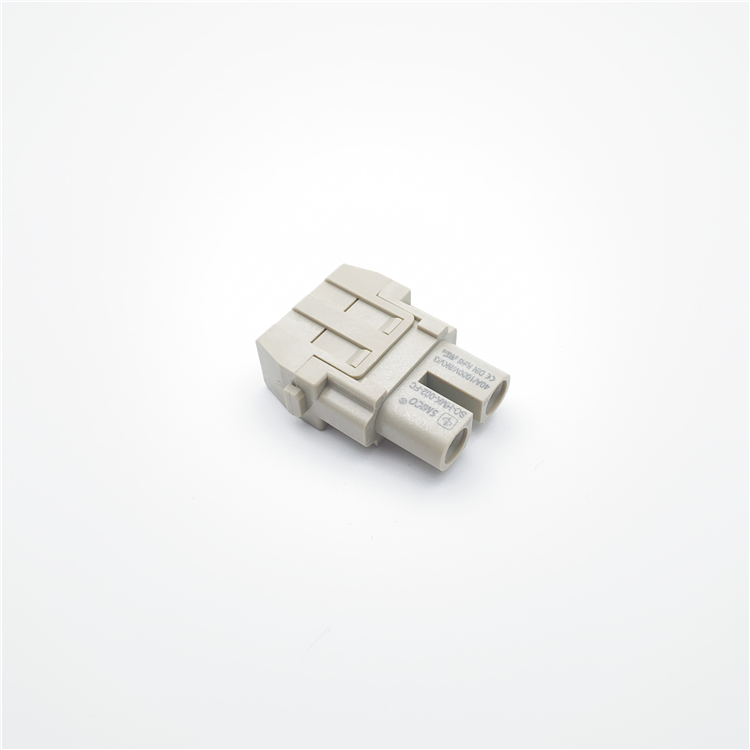

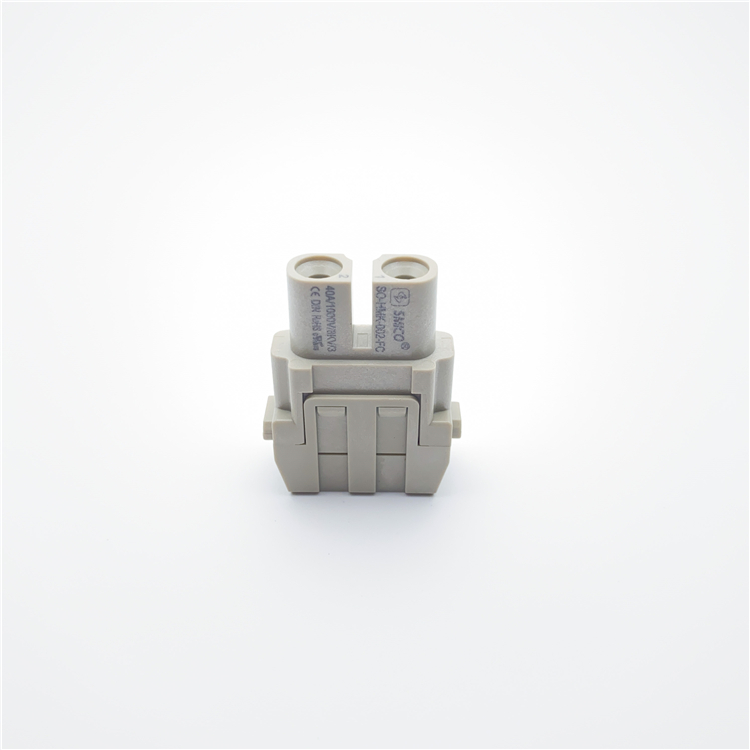

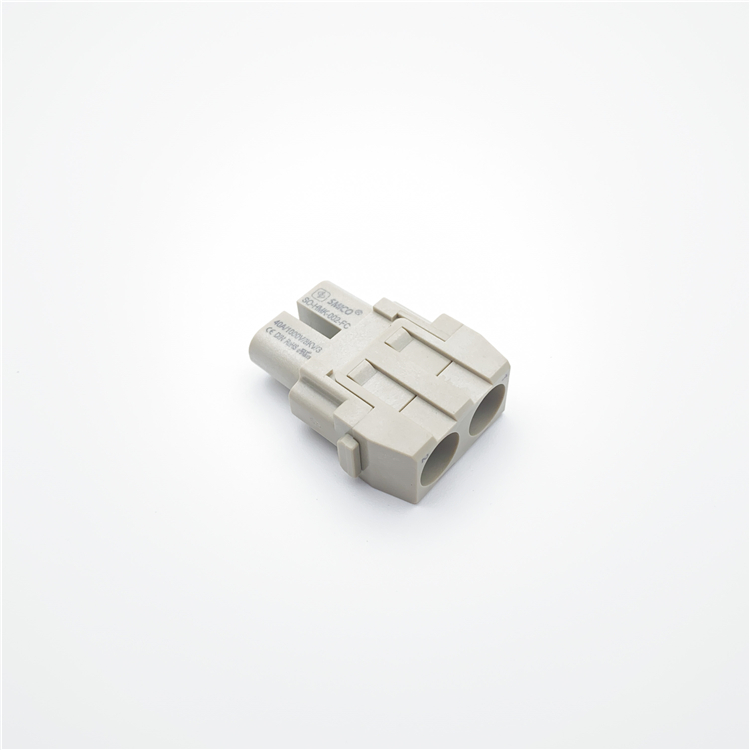

HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts
- Part
- SO-HMK-002-FC
- Product Certification
- UL CUL CE ROHS DMT
- Order No.
- 09140023102
Crimp or axial screw termination available. No special tools required for axial-screw termination.
Product Detail
| Inserts | |
| Number of contacts | 2 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 40A |
| ---Rated voltage | 1000V |
| ---Rated impulse voltage | 8kV |
| －Pollution degree | 3 |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤0.3mΩ |
| Crimp terminal | |
| ---mm2 | 1.5-10mm2 |
| ---AWG | 16-8 |
