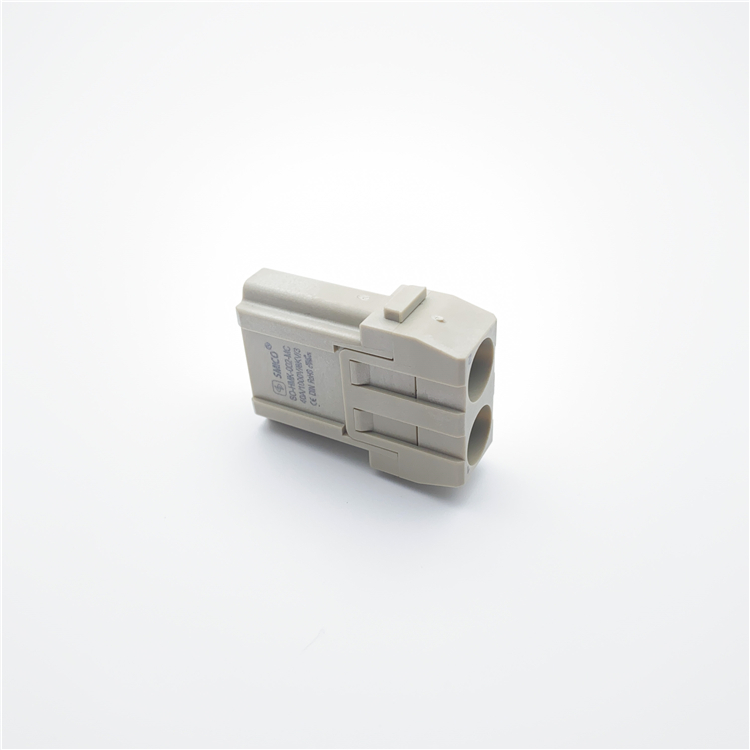

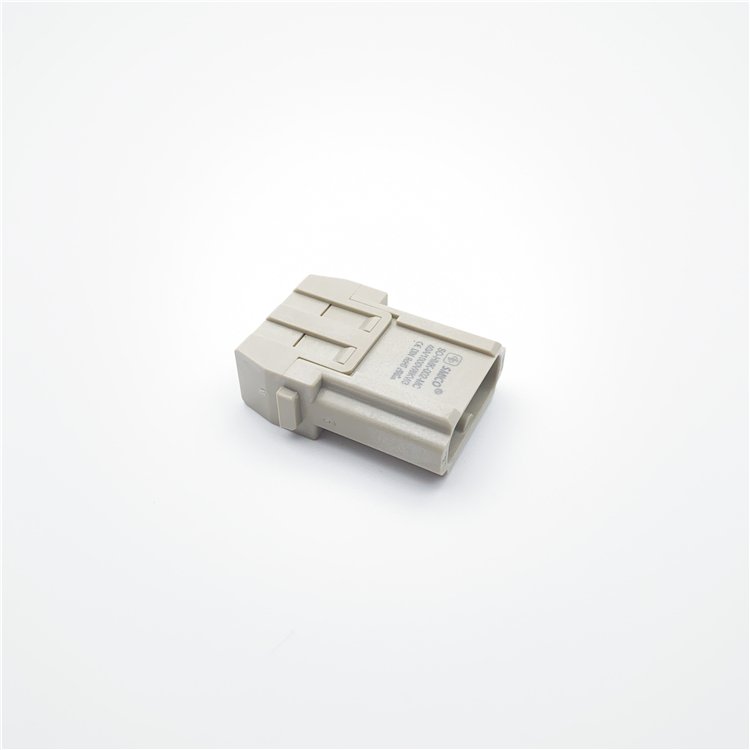

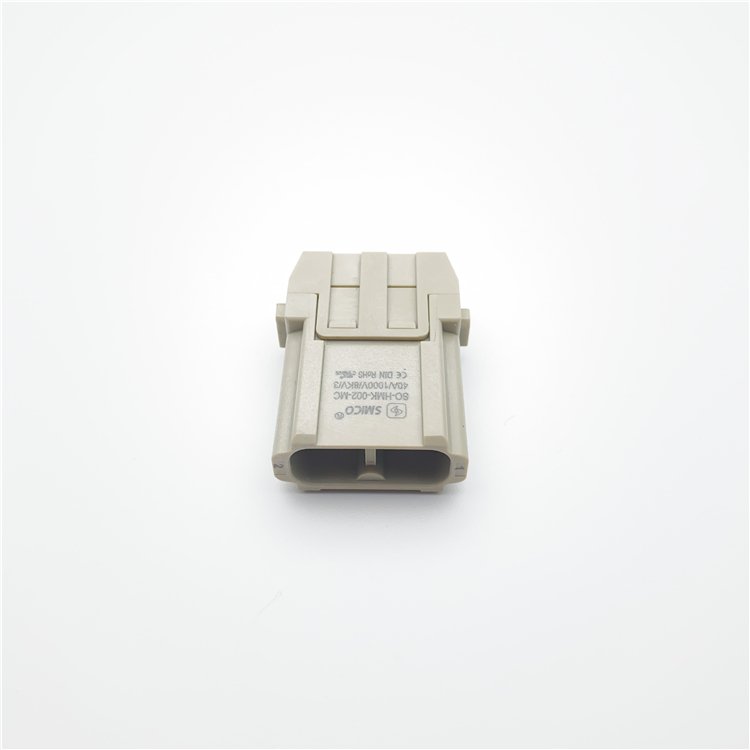

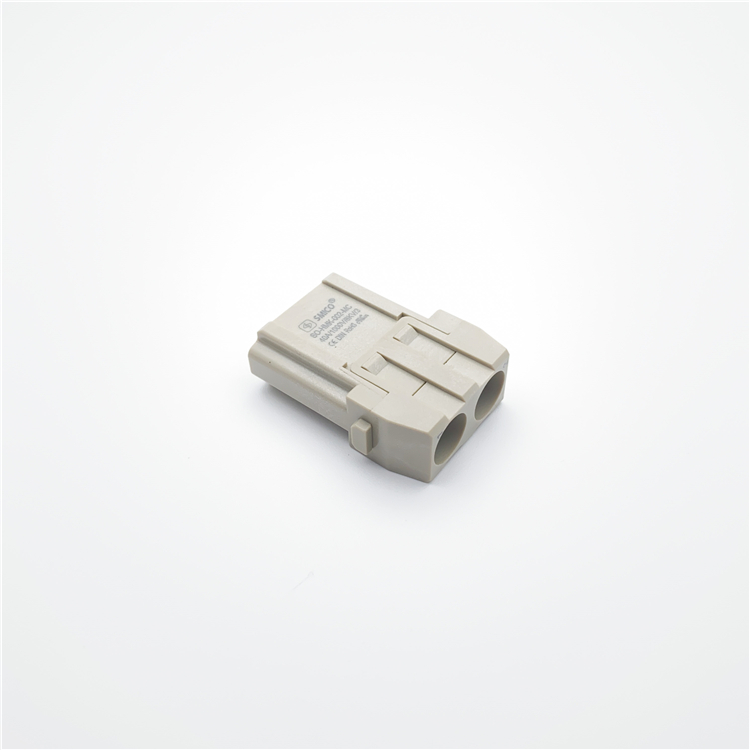

HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts
HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts
HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts
HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts
HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts
HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts

HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts

Part
SO-HMK-002-MC
Product Certification
UL CUL CE ROHS DMT
Order No.
09140023002

Crimp or axial screw termination available. No special tools required for axial-screw termination.

inquiry download pdf

Product Detail

Inserts
Number of contacts 2
Electrical dataacc. to EN 61 984
---Rated current 40A
---Rated voltage 1000V
---Rated impulse voltage 8kV
-Pollution degree 3
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance ≤0.3mΩ
Crimp terminal
---mm2 1.5-10mm2
---AWG 16-8
