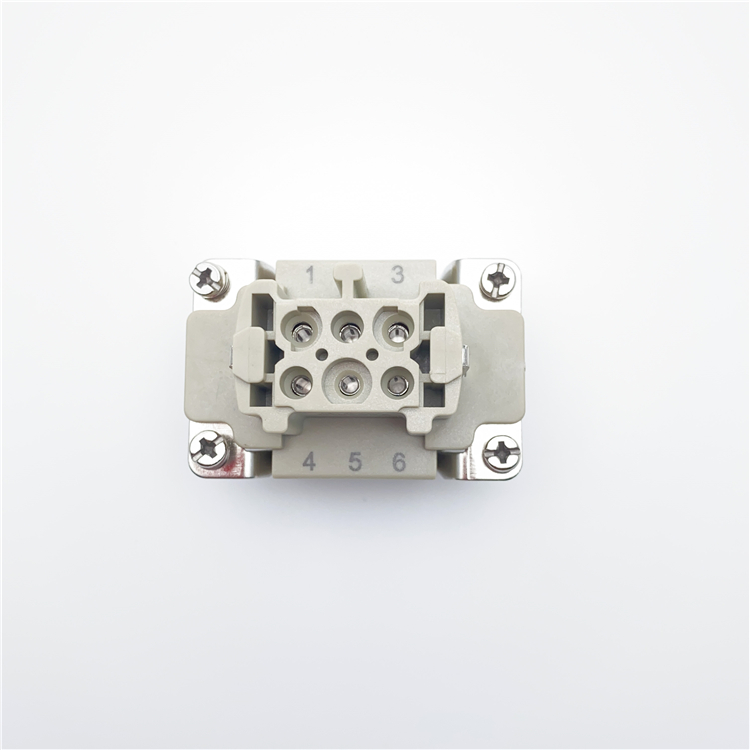

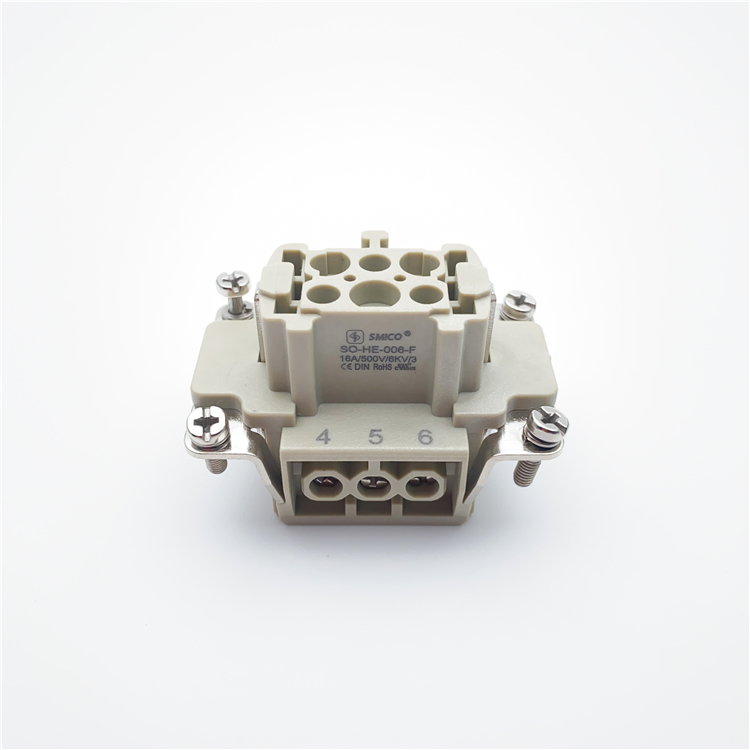

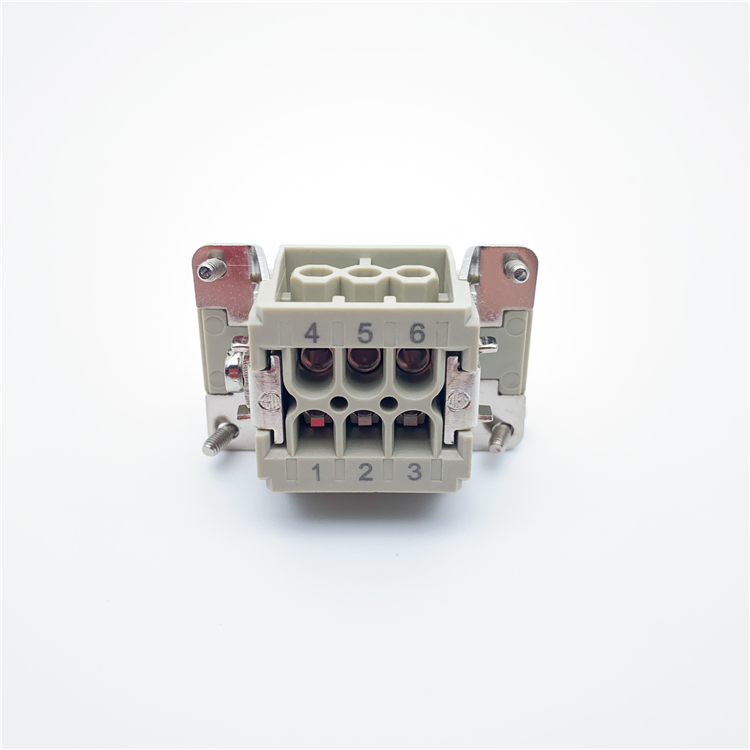

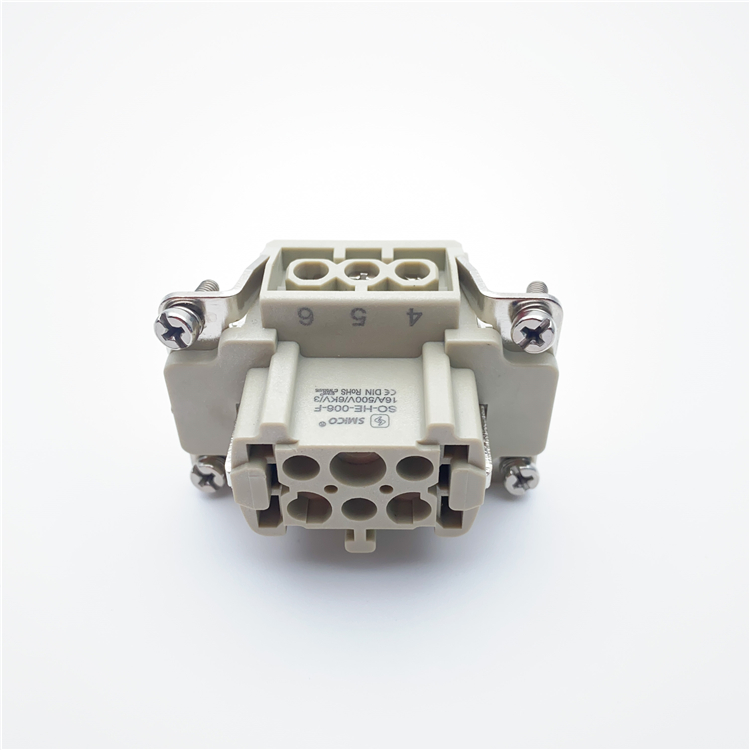

Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution
Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution
Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution
Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution
Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution
Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution

Female Screw Terminal Heavy Duty Connector KUKA Industrial Solution

Part
SO-HE-006-F
Product Certification
UL CUL CE ROHS DMT IEC-61984
Order No.
09330062701

Covers wide range of cross sections, Screw termination with wire protection

inquiry download pdf

Product Detail

Inserts Suitable Shell:6BHood/Housing
Number of contacts 6
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 0.14-2.5mm2
---AWG 26-14
---Tightening/Test torque 0.5N·m
---Stripping length 7.0mm
