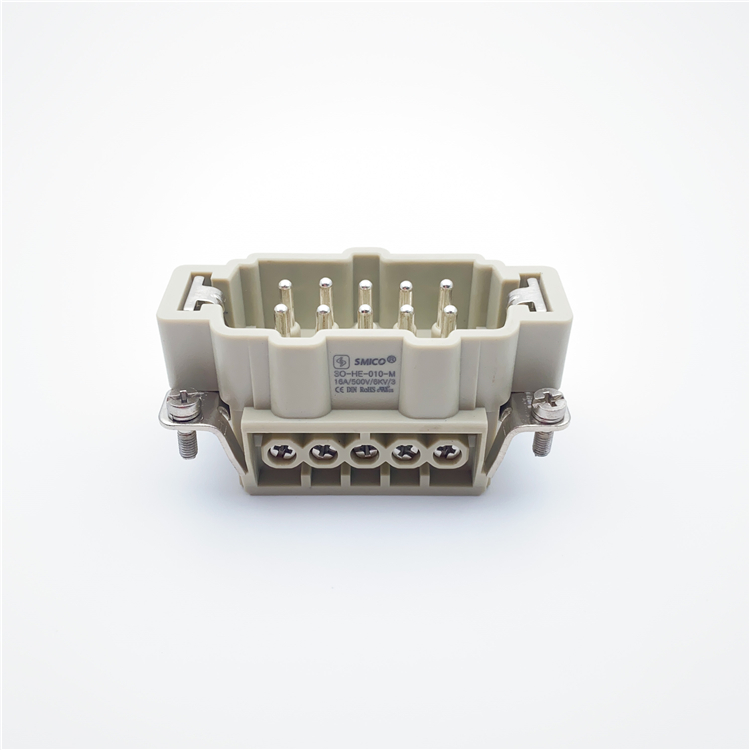

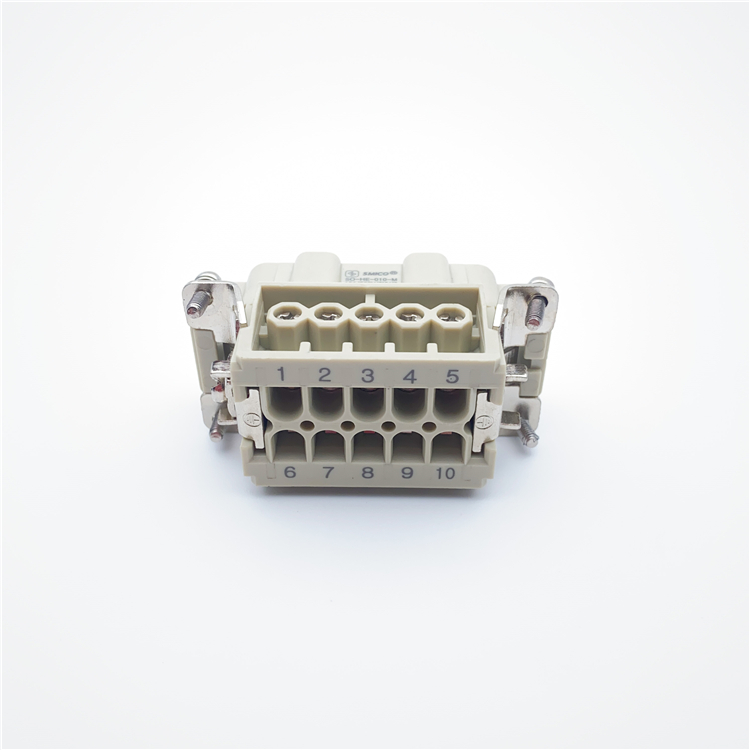

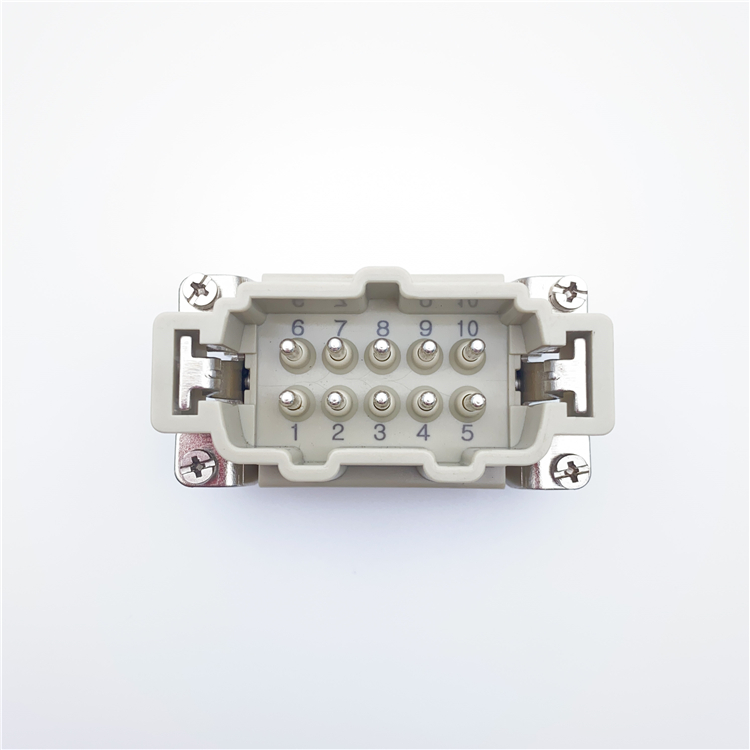

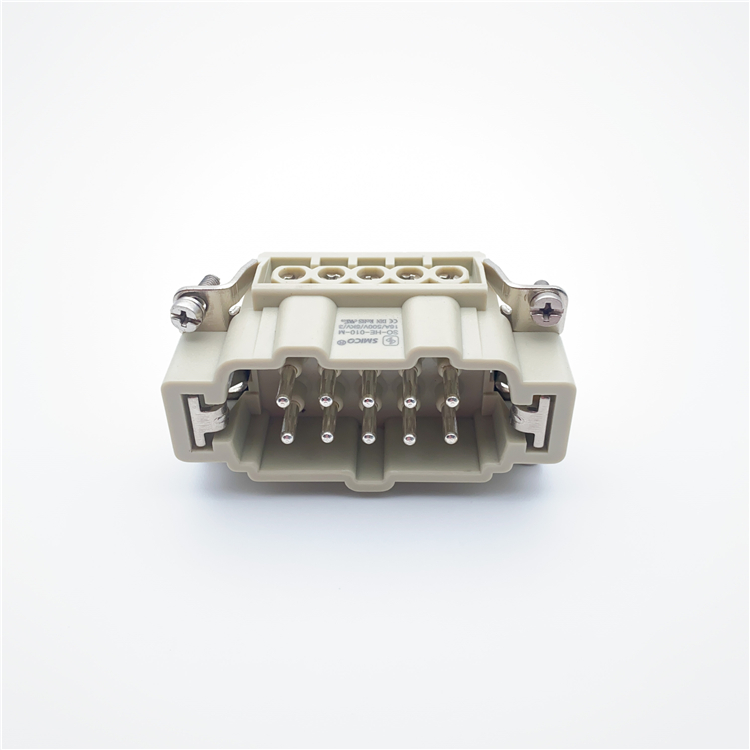

16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw
16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw
16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw
16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw
16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw
16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw

16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw

Part
SO-HE-010-M
Product Certification
UL CUL CE ROHS DMT IEC-61984
Order No.
09330102601

Covers wide range of cross sections, Screw termination with wire protection

inquiry download pdf

Product Detail

Inserts Suitable Shell:10BHood/Housing
Number of contacts 10
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 0.14-2.5mm2
---AWG 26-14
---Tightening/Test torque 0.5N·m
---Stripping length 7.0mm
