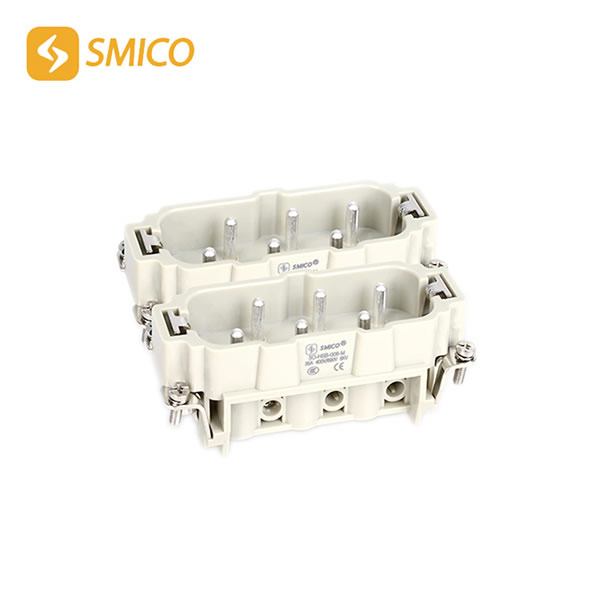

HSB 12 Pin Male/Female Heavy Duty Wire Connector With Screw Insert

HSB 12 Pin Male/Female Heavy Duty Wire Connector With Screw Insert

Part
SO-HSB-012-M
Product Certification
UL CUL CE ROHS DMT

Screw termination with wire protection, Suitable for power supply applications, Termination with standard screw driver

inquiry

Product Detail

Inserts Suitable Shell:32BHood/Housing
Number of contacts 12
Electrical data acc. to EN 61 984
---Rated current 35A
---Rated voltage conductor - ground 400V
---Rated voltage conductor - conductor 690V
---Rated impulse voltage 6kV
---Pollution degree 3
---or 35A 500V 6kV 3
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 6mm²
---AWG 10
---Tightening torque 1.2Nm
