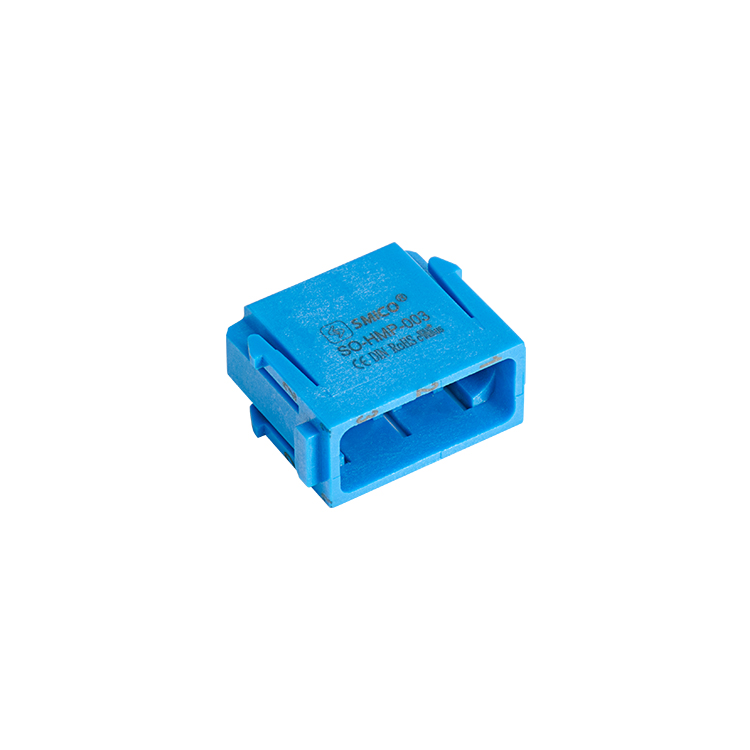

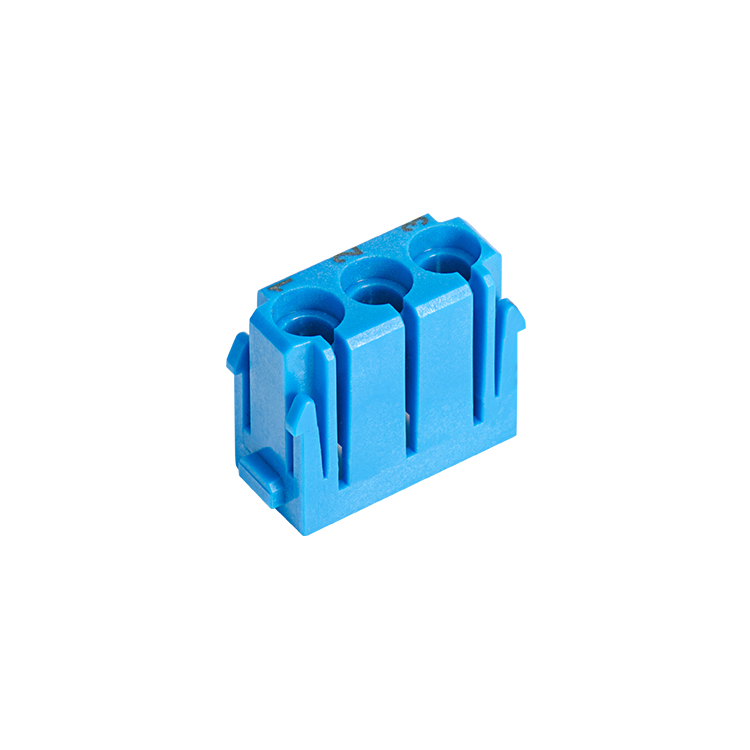

Han Pneumatic Heavy Duty Electrical Connector Polycarbonate Material
- Part
- SO-HMP-003
- Product Certification
- UL CUL CE ROHS DMT
- Order No.
- 09140034501
For the transmission of clean and dry compressed air. Female contacts with/without shut off. Removal of tubes from pre-assembled pneumatic contact is possible.
Product Detail
| Inserts | |
| Number of contacts | 2 |
| Colour | blue |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+80℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | delrin acetal |
| Colour | black |
| Tube termination | |
| ---Internal diameter (ID) | 1.6mm / 1/16“ 3.0mm 4.0mm / 1/8“ |
| Working pressure | up to 8 bar / 116 psi |
| Sealing | |
| ---Material | Buna-N |
| Shut off valve | |
| ---Material | Polypropylen |
