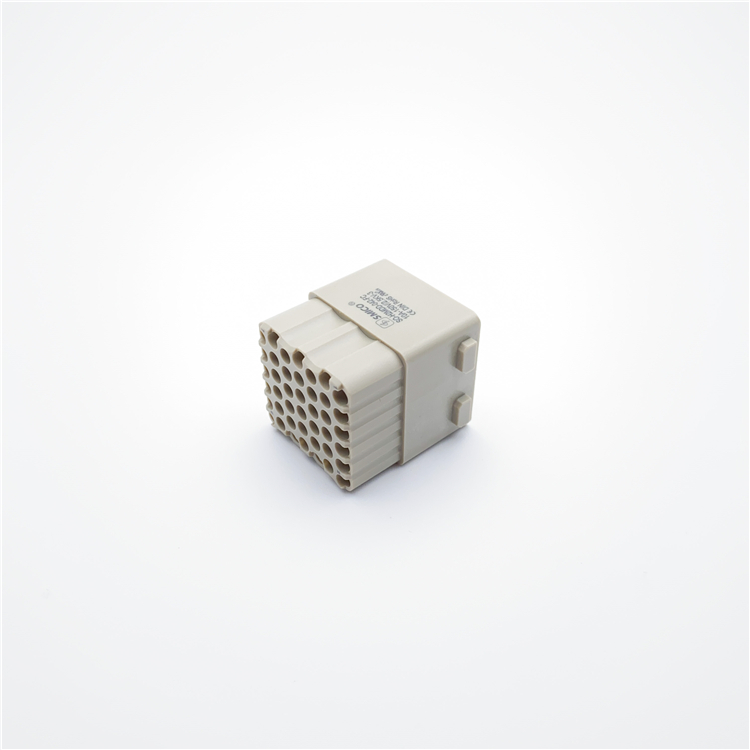

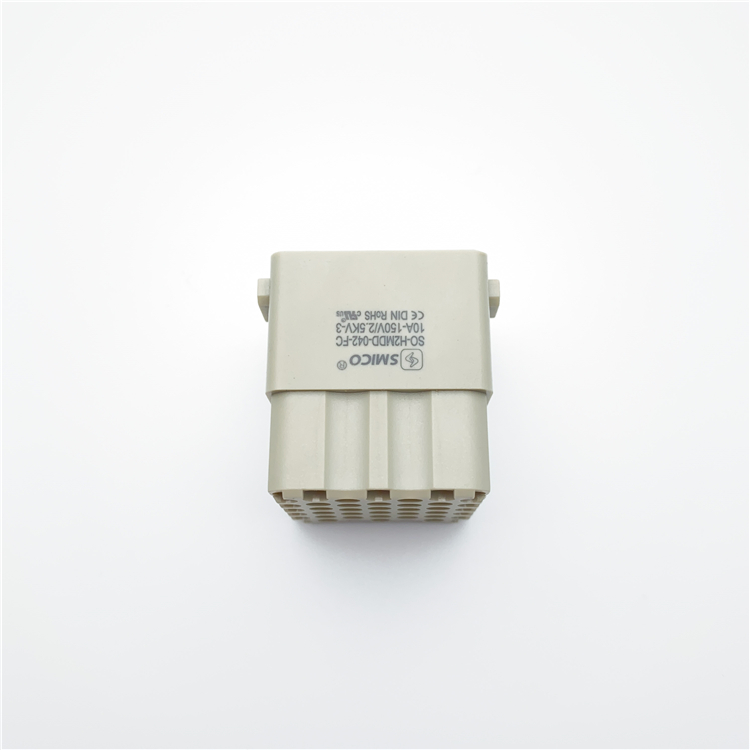

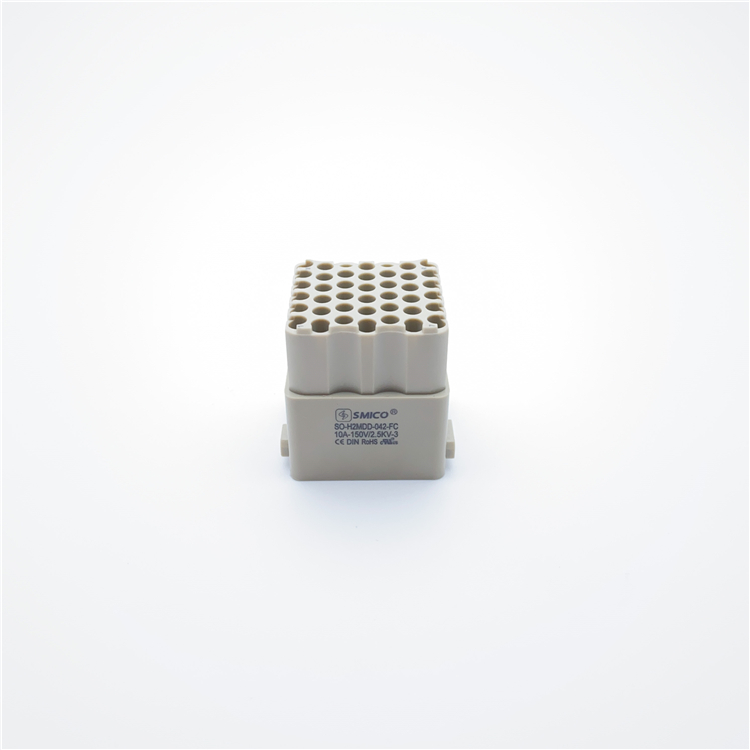

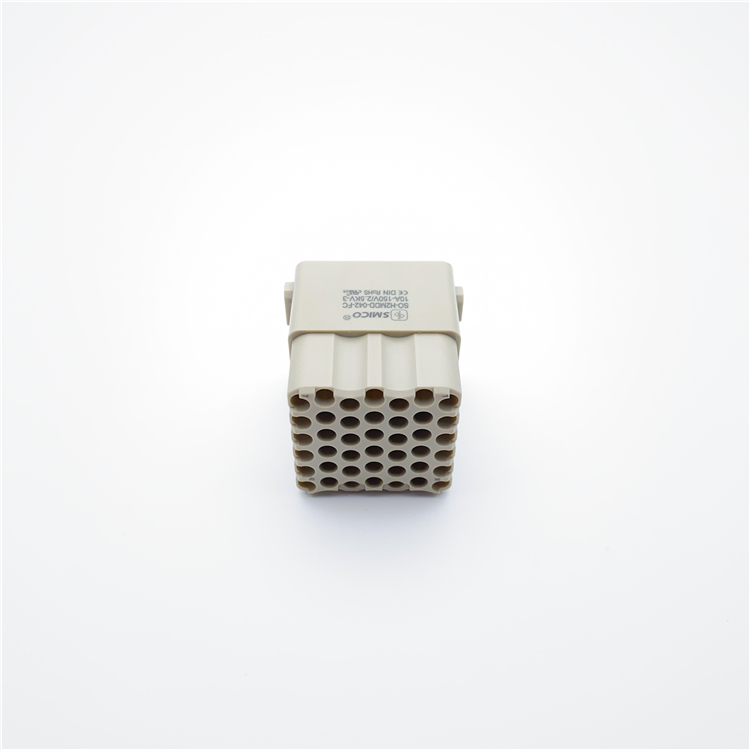

Han H2MDD Heavy Duty Electrical Connector High Contact Density 42 Pin
- Part
- SO-H2MDD-042-FC
- Product Certification
- UL CUL CE ROHS DMT
Suitable for HD Crimp contacts. Higher density of crimp contacts. Standard module for power up to 10A. Also suitable as reliable signal connector.
Product Detail
| Inserts | |
| Number of contacts | 42 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 150V |
| ---Rated impulse voltage | 2.5kV |
| ---Pollution degree | 3 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥10^10Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---mm2 | 0.14-2.5mm2 |
| ---AWG | 26-14 |
