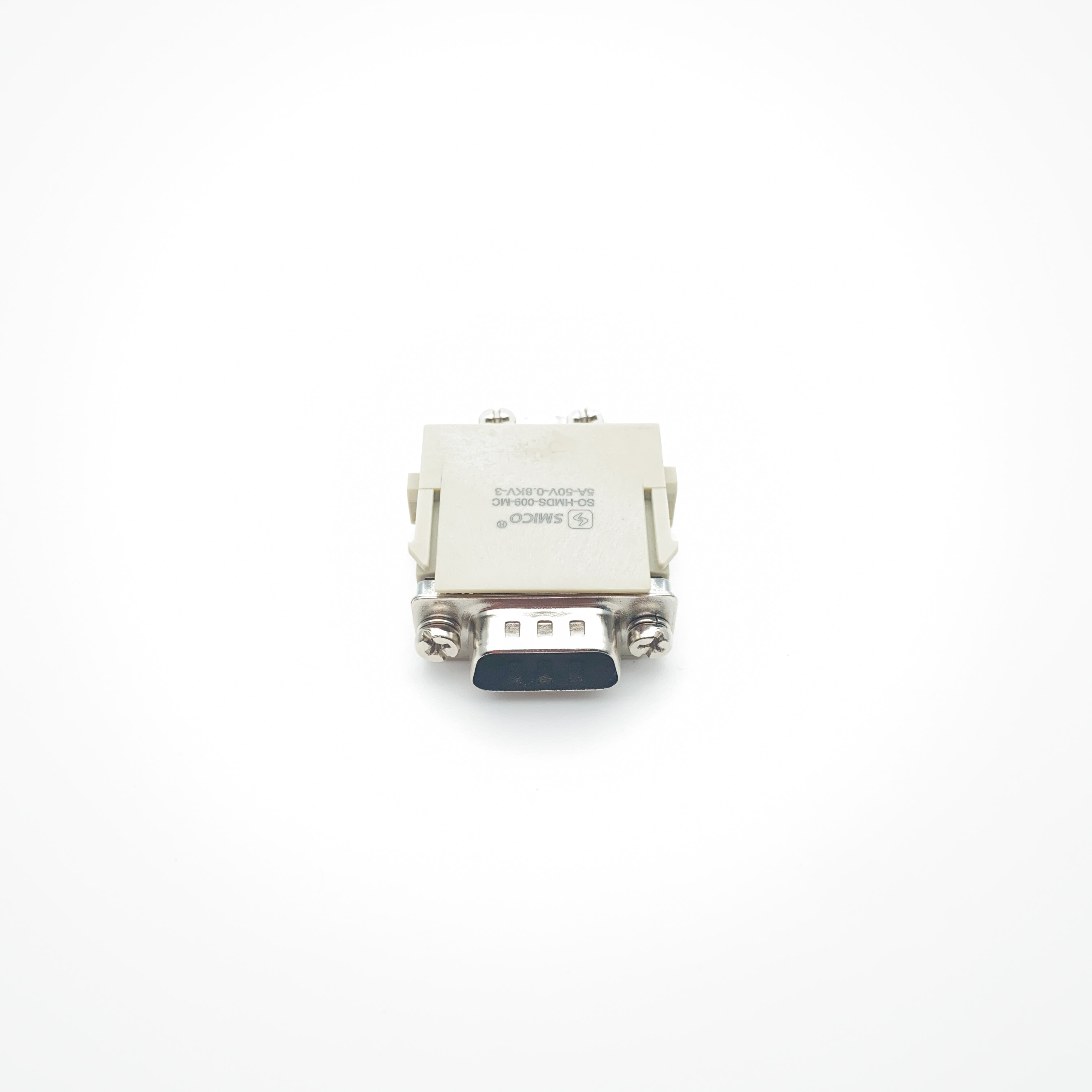

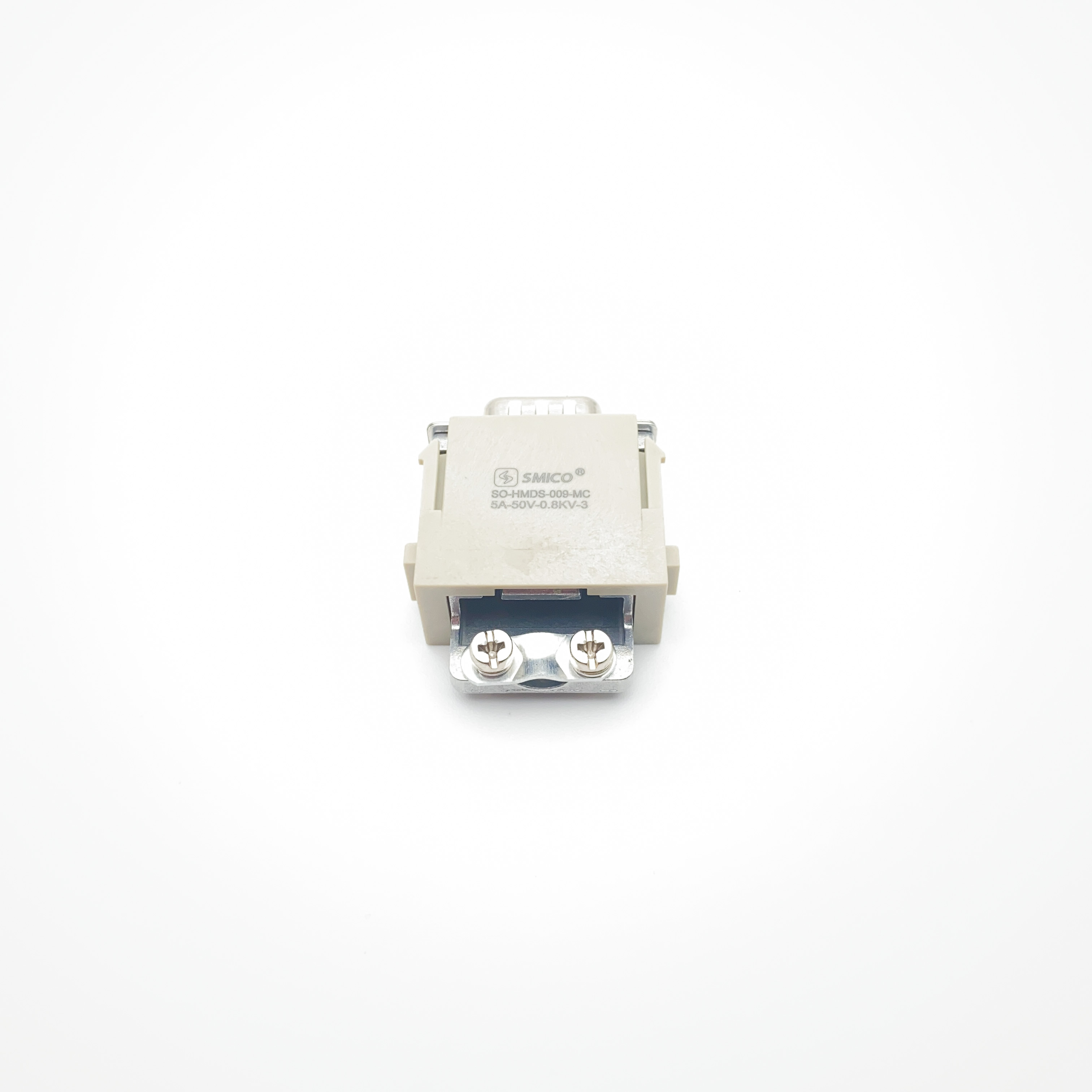

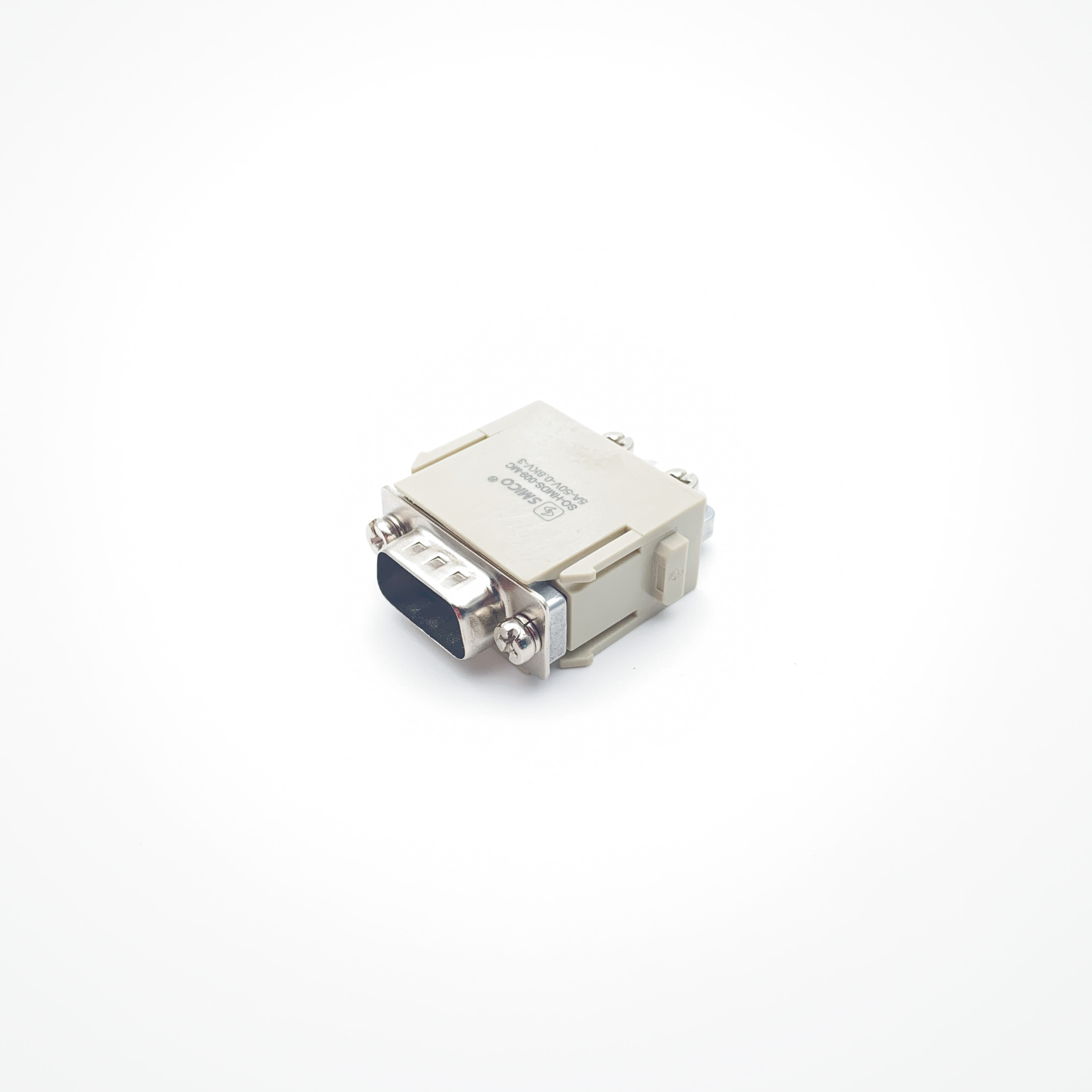

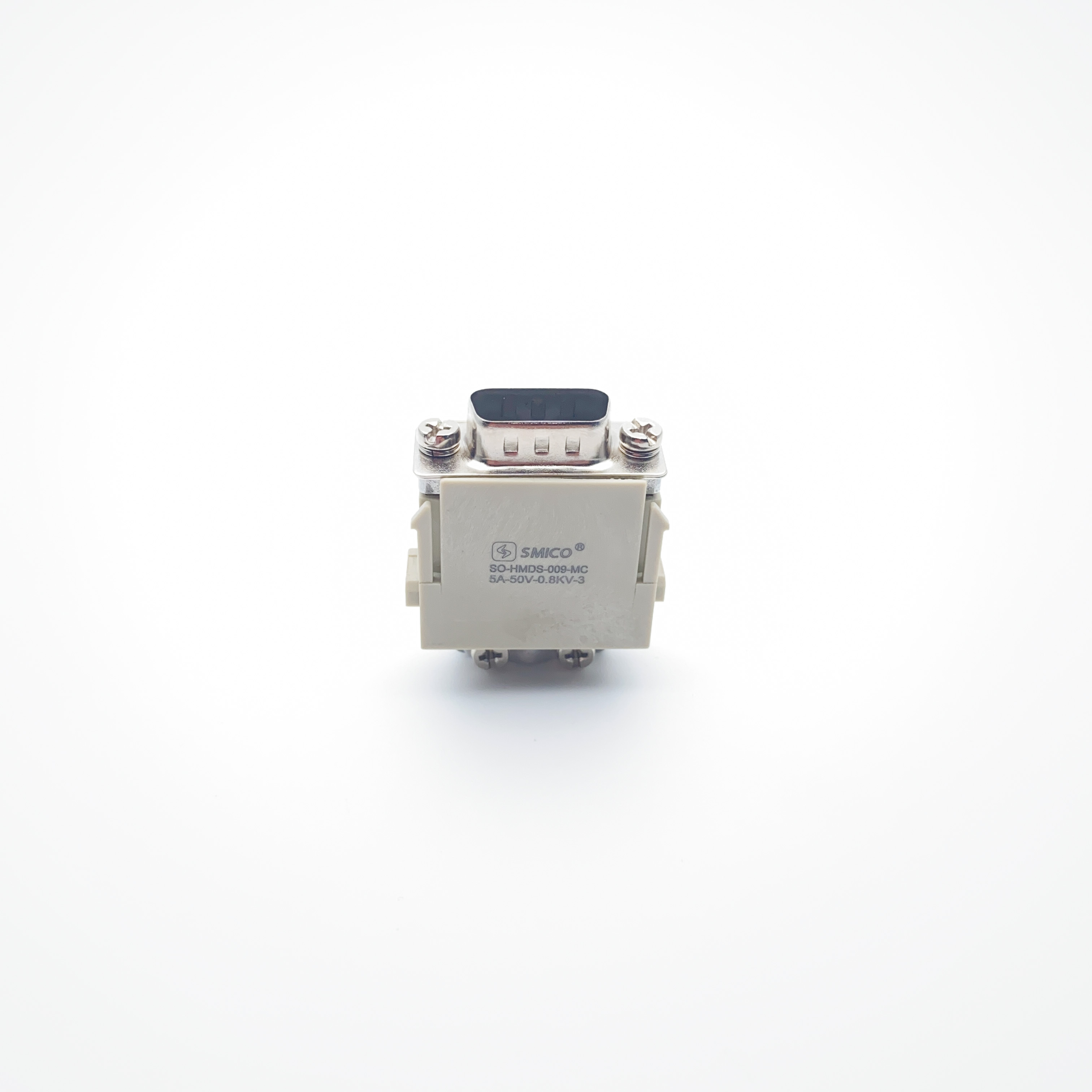

Electrical Harting Modular 9 Pin Connectors With Silver Plated Contacts
Electrical Harting Modular 9 Pin Connectors With Silver Plated Contacts
Electrical Harting Modular 9 Pin Connectors With Silver Plated Contacts
Electrical Harting Modular 9 Pin Connectors With Silver Plated Contacts
Electrical Harting Modular 9 Pin Connectors With Silver Plated Contacts
Electrical Harting Modular 9 Pin Connectors With Silver Plated Contacts

Electrical Harting Modular 9 Pin Connectors With Silver Plated Contacts

Part
SO-HMDS-009-MC
Product Certification
UL CUL CE ROHS DMT
Order No.
09140093001

H-Quick Lock or Crimp terminal available. Standard module for signal up to 5A.

inquiry download pdf

Product Detail

Inserts
Number of contacts 9
Electrical dataacc. to EN 61 984
---Rated current 5A
---Rated voltage 50V
---Rated impulse voltage 0.8kV
-Pollution degree 3
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥10^10Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material copper alloy
Surface hard-silver plated
hard-gold plated
Contact resistance ≤3mΩ
Crimp terminal
---mm2 0.09-0.82mm2
---AWG 28-18
