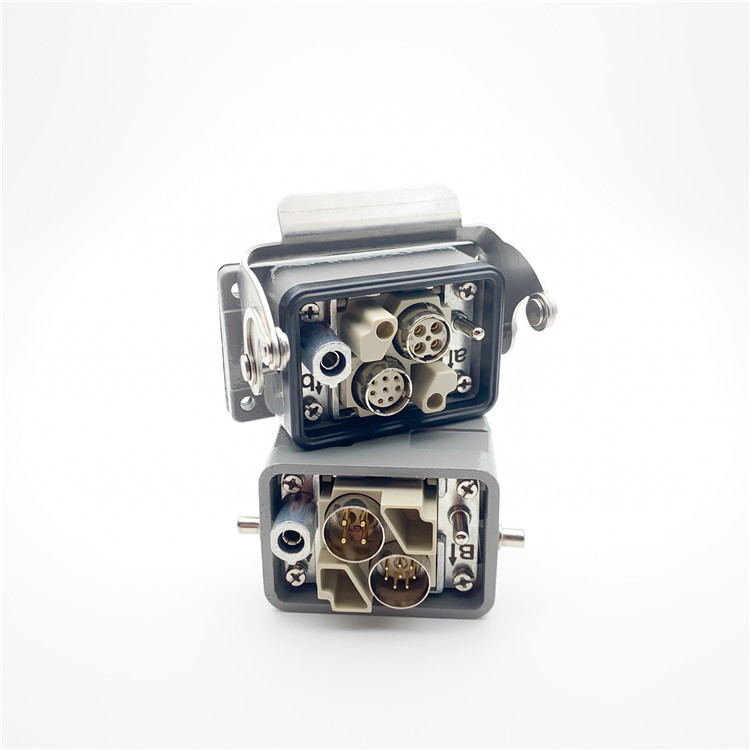

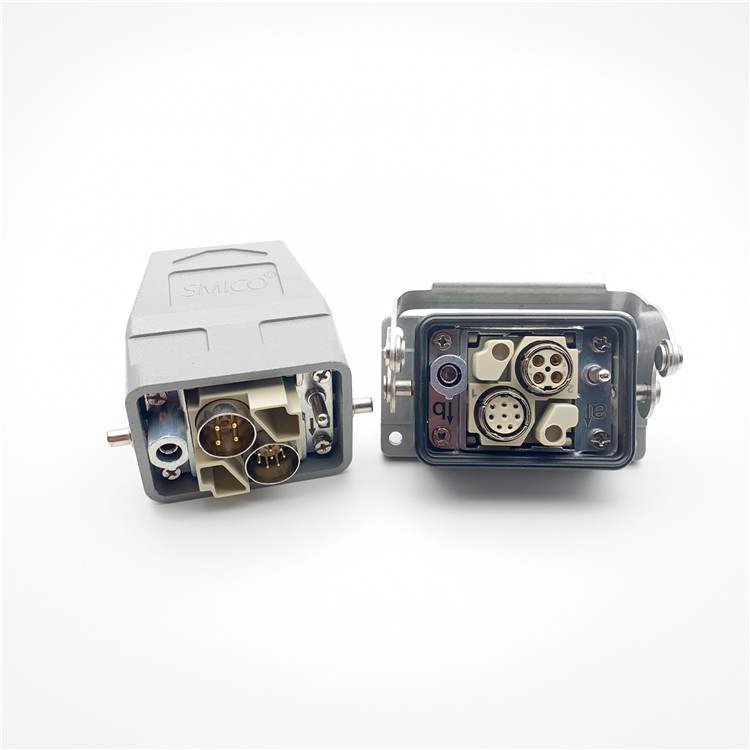

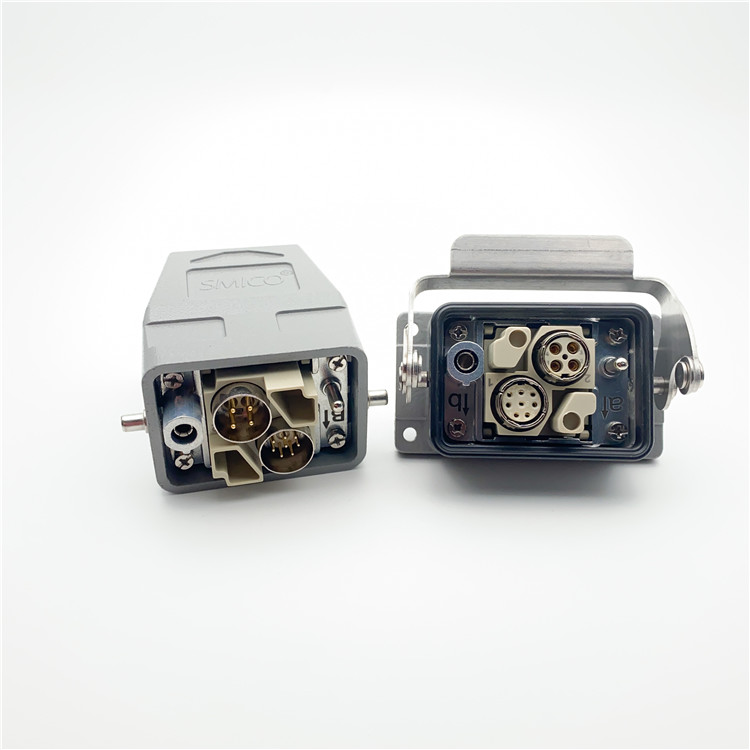

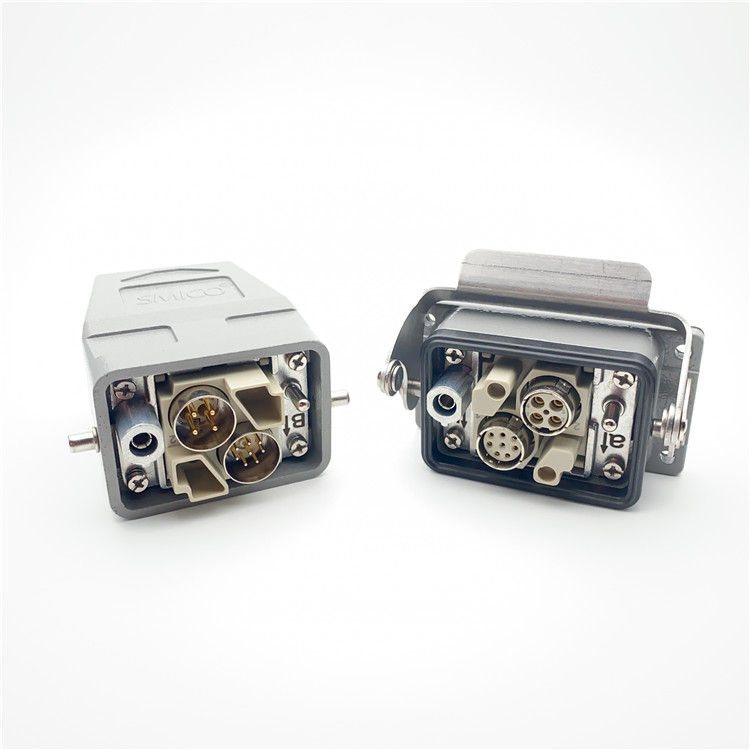

HDC CM BUS MV2 2PIN Modular shielding heavy duty connector H2M-002
HDC CM BUS MV2 2PIN Modular shielding heavy duty connector H2M-002
HDC CM BUS MV2 2PIN Modular shielding heavy duty connector H2M-002
HDC CM BUS MV2 2PIN Modular shielding heavy duty connector H2M-002
HDC CM BUS MV2 2PIN Modular shielding heavy duty connector H2M-002
HDC CM BUS MV2 2PIN Modular shielding heavy duty connector H2M-002

HDC CM BUS MV2 2PIN Modular shielding heavy duty connector H2M-002

Part
SO-H2M-002-F
Product Certification
CE,UL,CUL,ROHS,DMT
Order No.
09140023101

Shielding bus separate from housing potential. Suitable for the transmission of sensitive signals. The four pole H Quintax contact

inquiry

Product Detail

Inserts
Number of contacts 2
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Q-Coax contacts
Number of contacts
-Q-Coax 4+shielding
-High Density Q-Coax 8+shielding
Electrical data acc. to EN 61 984
-Q-Coax 10A 50V 0.8kv 3
-High Density Q-Coax 5A 50V 0.8kv 3
Rated current 10/5A
Rated voltage 50V
Rated impulse voltage 0.8kv
Pollution degree 3
Material
-Insulator polycarbonate
-Outer conductor zinc alloy
Contact resistance ≤4mΩ
Limiting temperatures -40℃...+85℃
Flammability acc. to UL 94 V0
Outer surface finish nickel
Cable diameter 3-9.5mm
D-Sub crimp contacts(5A)
Material copper alloy
Surface hard-gold plated
Contact resistance ≤3mΩ
Crimp terminal
-mm2 0.09-0.52mm2
-AWG 28-20
D contacts(10A)
Material copper alloy
Surface hard-gold plated
Contact resistance ≤3mΩ
Crimp terminal
-mm2 0.14-2.5mm2
-AWG
