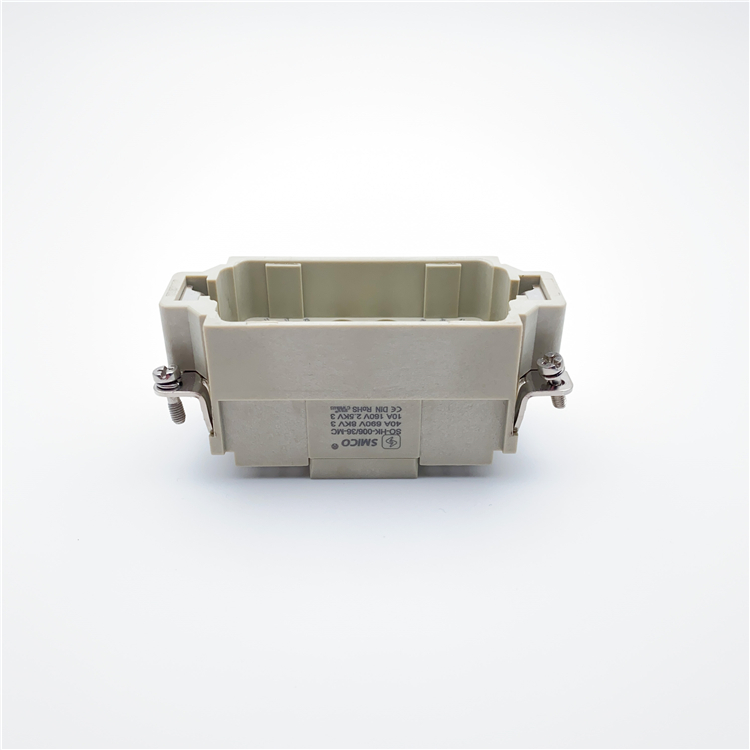

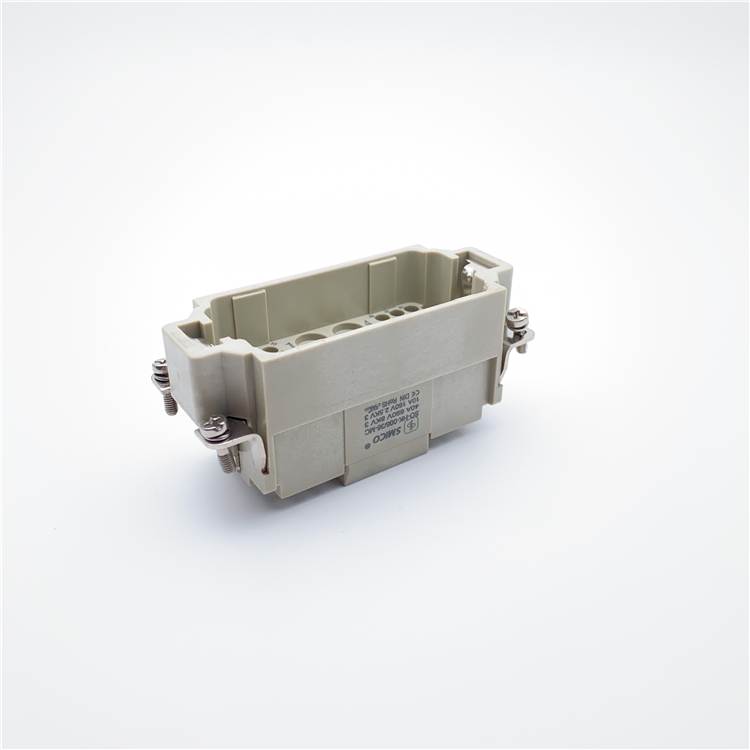

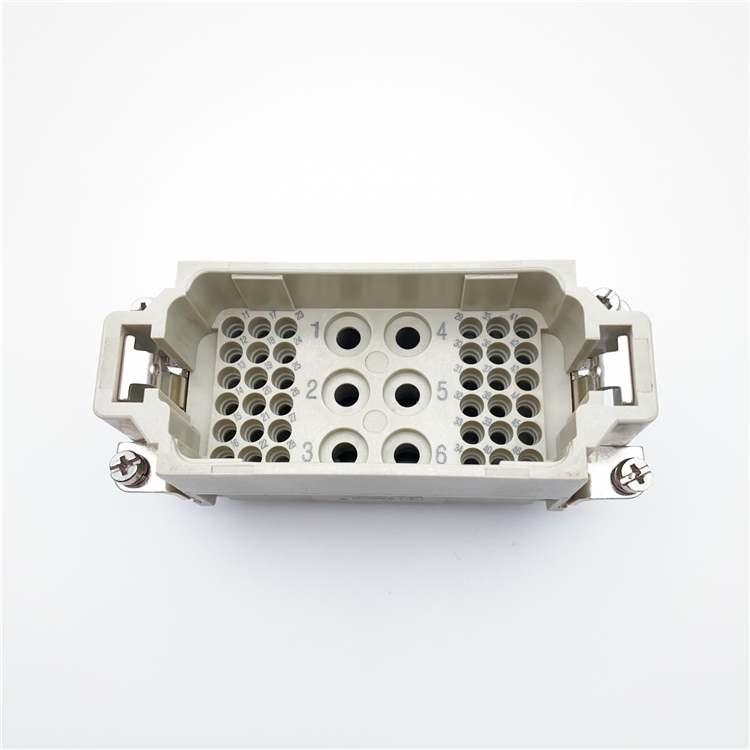

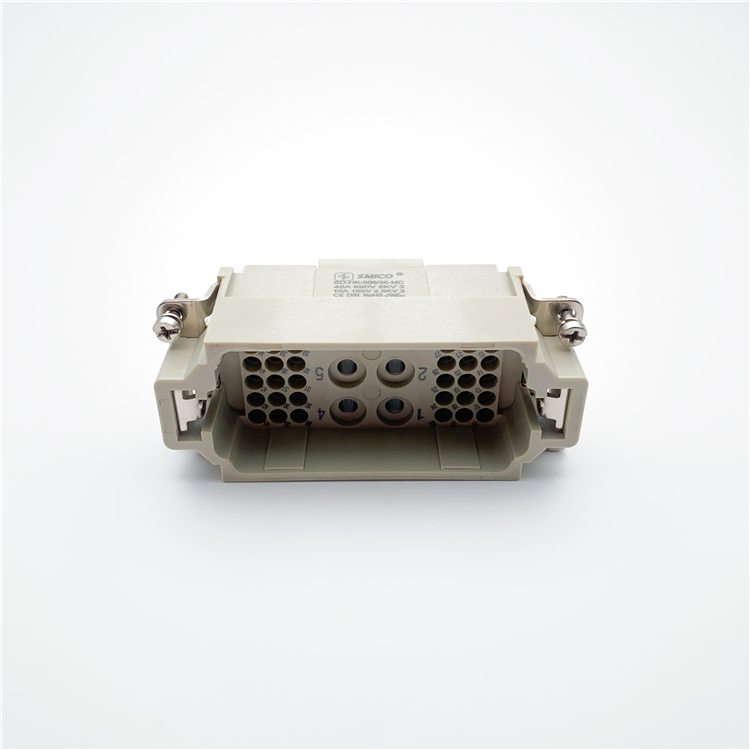

6 plus 36 Pin Heavy Duty Wire Connector SO-HK-006/36-MC 40A/10A With Crimp Terminal Inserts 09380423001
- Part
- SO-HK-006/36-MC
- Order No.
- 09380423001
6 plus 36 Pin Heavy Duty Wire Connector SO-HK-006/36-MC 40A/10A With Crimp Terminal Inserts 09380423001
Product Detail
| Inserts | Suitable Shell:16BHood/Housing |
| Number of contacts | 6/36+PE |
| Electrical data acc. to EN 61 984 | |
| Power area | |
| ---Rated current | 40A |
| ---Rated voltage | 690V |
| ---Rated impulse voltage | 8kV |
| ---Pollution degree | 3 |
| Signal area | |
| ---Rated current | 10A |
| ---Rated voltage | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| Rated voltage acc. to UL/CSA | 600/300V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Power contacts | |
| ---Material | copper alloy |
| ---Surface | hard-silver plated |
| hard-gold plated | |
| ---Contact resistance | ≤0.3mΩ |
| ---Crimp terminal | |
| ------mm² | 1.5-6mm² |
| ------AWG | 16-10 |
| Signal contacts | |
| ---Material | copper alloy |
| ---Surface | hard-silver plated |
| hard-gold plated | |
| ---Contact resistance | ≤3mΩ |
| ---Crimp terminal | |
| ------mm² | 0.14-2.5mm² |
| ------AWG | 26-14 |
