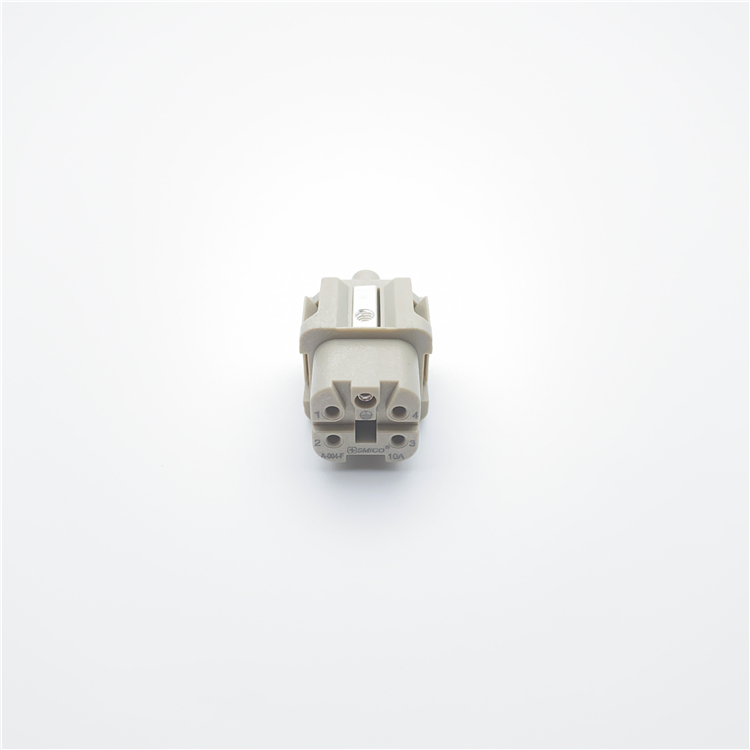

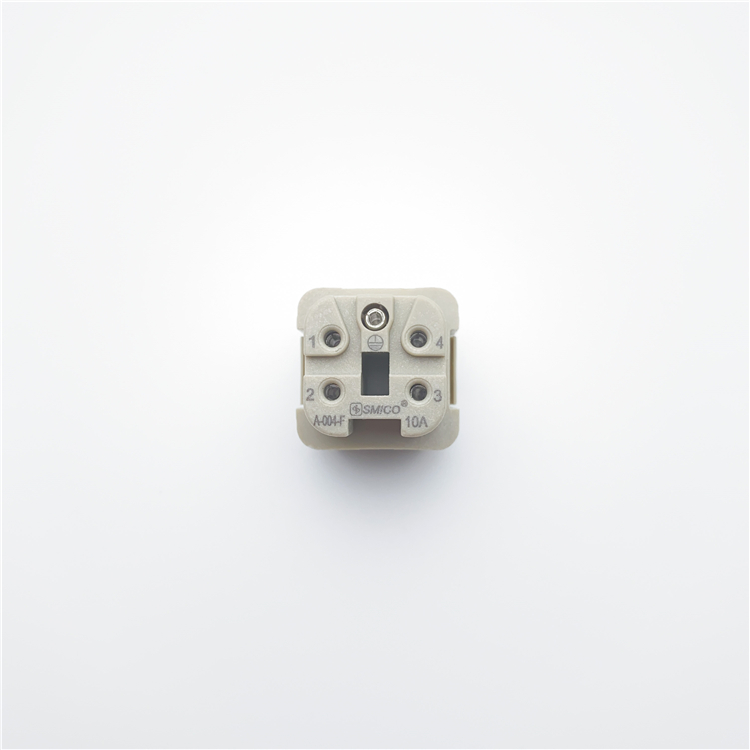

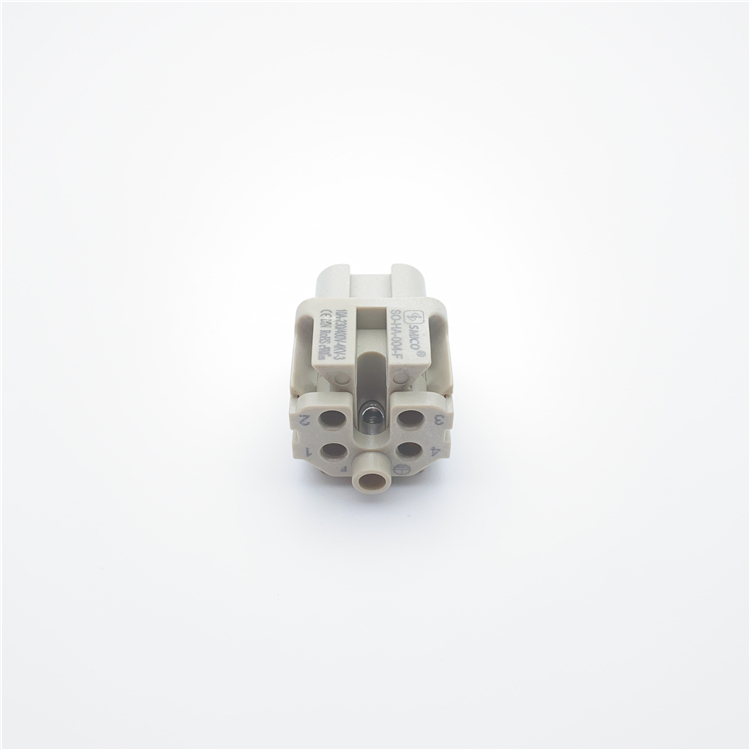

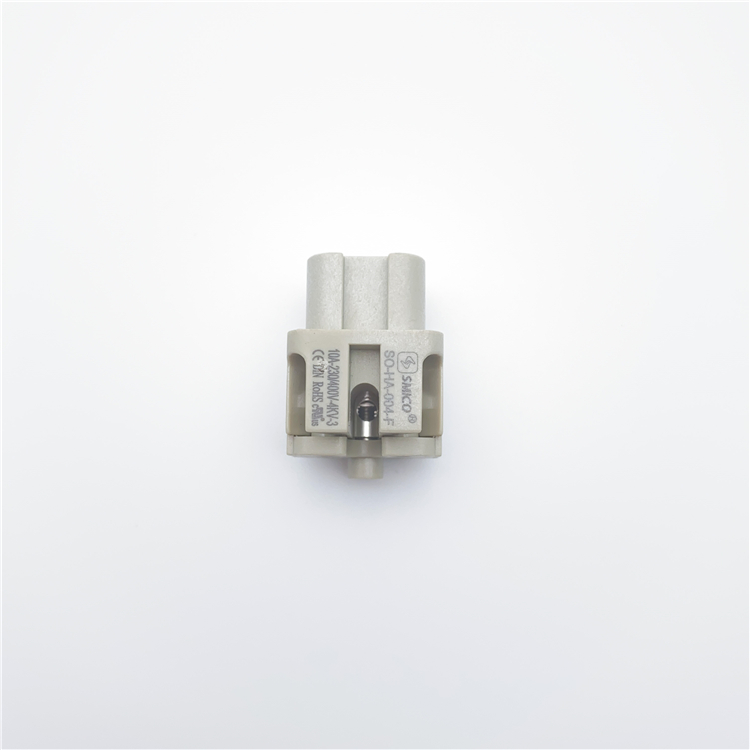

Part
SO-HA-004-F
Product Certification
UL CUL CE ROHS DMT IEC-61984
Order No.
09200042711

Innovative SMICO-Quick Lock termination technology with reduced wiring times, No special tools required, Insert suitable for all metal plastic hoods and housings of the sized H3A, For currents up to 10A

inquiry download pdf

Product Detail

Inserts Suitable Shell:3AHood/Housing
Number of contacts 4
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage conductor 230/400V
---Rated impulse voltage 4kV
---Pollution degree 3
---or 10A 250V 4kV 3
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 1.0-2.5mm2
---AWG 18-14
---Tightening/Test torque 0.25N·m
