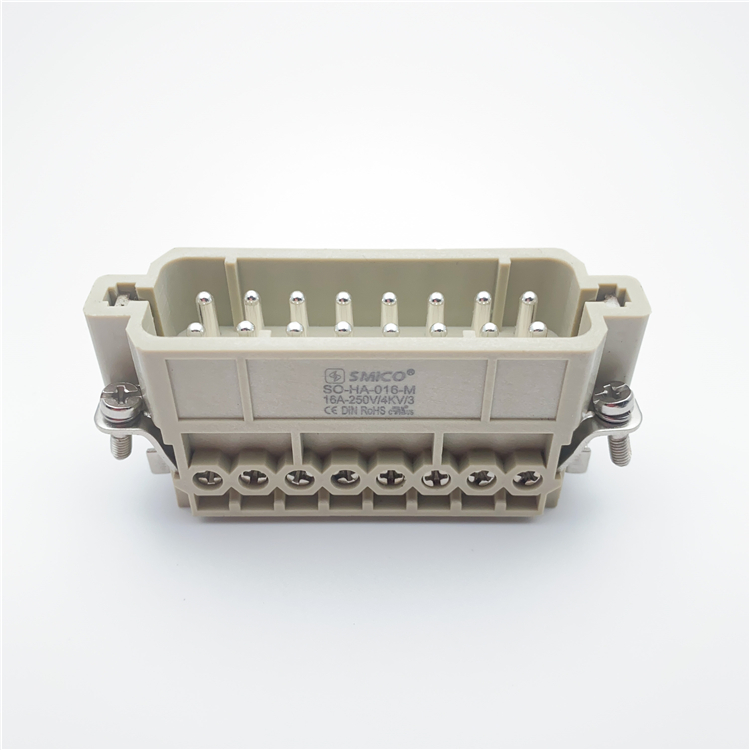

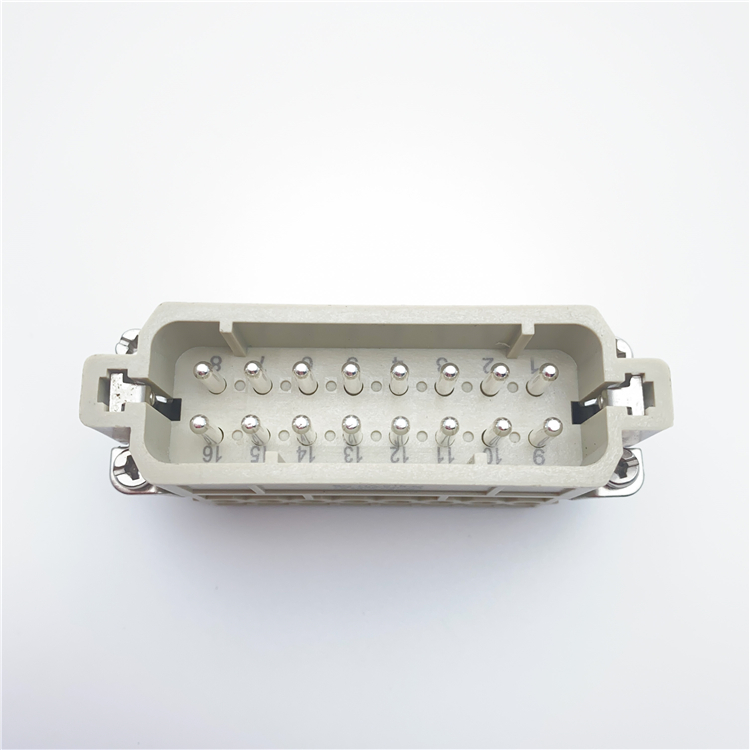

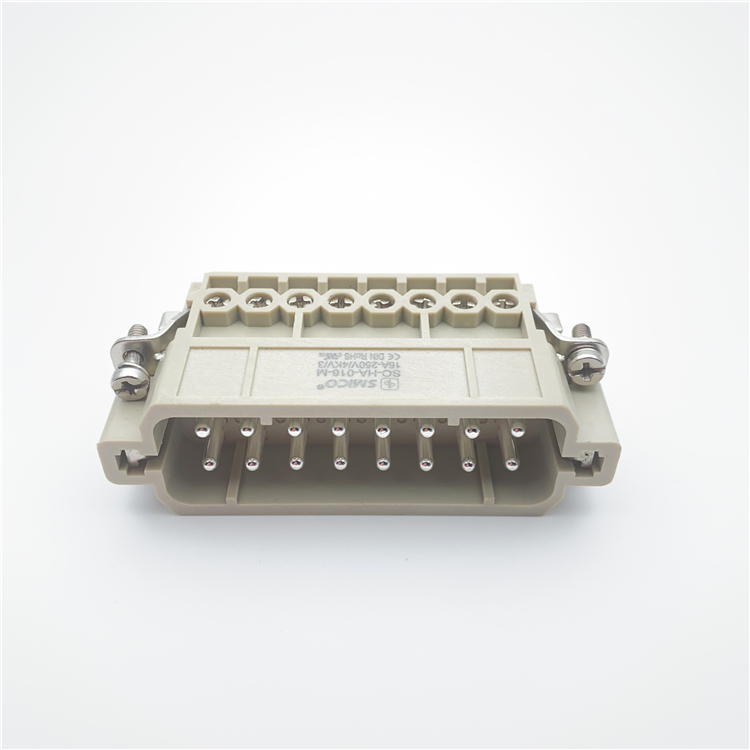

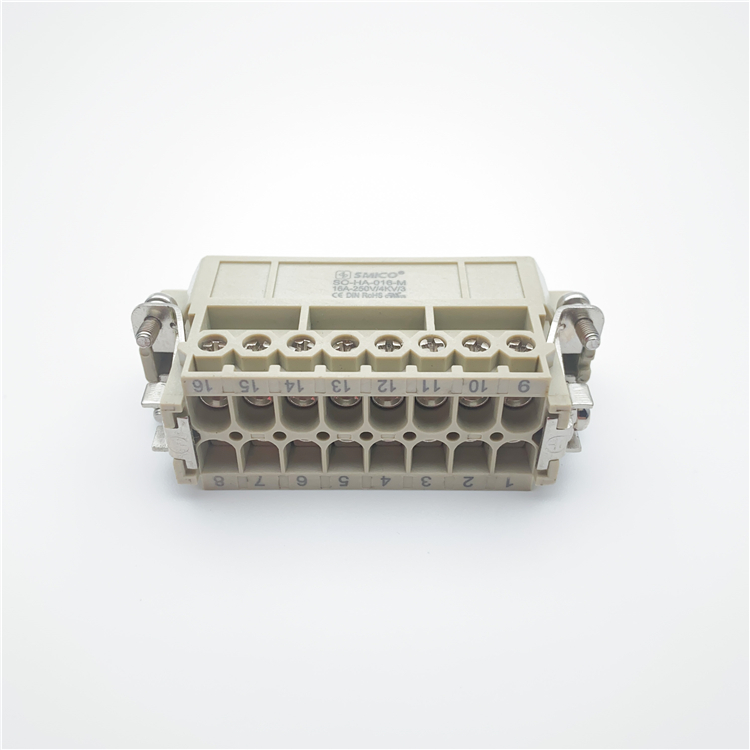

16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector
16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector

16P Male 16 Amp 240v Heavy Duty Power Connectors 16 Pin Rectangular Connector

Part
SO-HA-016-M
Product Certification
UL CUL CE ROHS DMT IEC-61984
Order No.
09200162612

Small size, Available in crimp and screw termination, Screw termination also available with wire protection

inquiry download pdf

Product Detail

Inserts Suitable Shell:16AHood/Housing
Number of contacts 16
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 250V
---Rated impulse voltage 4kV
---Pollution degree 3
---or 16A 230/400V 4kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 1.0-2.5mm2
---AWG 18-14
---Tightening/Test torque 0.25N·m
